Dry fog dust suppression system diagram

The KD-GW Series Ultra-Fine Water Mist Dust Collector (abbreviated as "Dry Fog Machine",, independently developed and designed by our company, serves as the core equipment of the entire dry fog dust suppression system.It mainly consists of water control pipelines, air control pipelines, purging control pipelines, sewage discharge control pipelines, and an embedded electric control cabinet.
Through the above control pipelines, the set air pressure, water pressure, air flow rate, water flow rate, etc., are controlled by PLC and other components in the electric control cabinet, and delivered via pipelines to the dry fog box assembly or universal joint assembly, ultimately achieving spray dust suppression at the dry fog nozzles.
The electrical control system integrates a programmable logic controller (PLC), human-machine interface (HMI), protection circuits, relays and auxiliary components, providing customers with both automatic and manual operation modes.In automatic mode, the system can automatically receive remote trigger signals from relevant equipment to start/stop spraying.In manual mode, operators can start/stop spraying and adjust relevant system parameters (such as spraying cycle and pipeline purging time) on the human-machine interface (see Figure 12).
The PLC and HMI inside the dry fog machine adopt first-tier brands including Siemens, ABB, Xinje;electrical components adopt first-tier brands such as Schneider, ABB, Chint;terminal blocks adopt first-tier brands such as Phoenix Contact, Weidmüller.

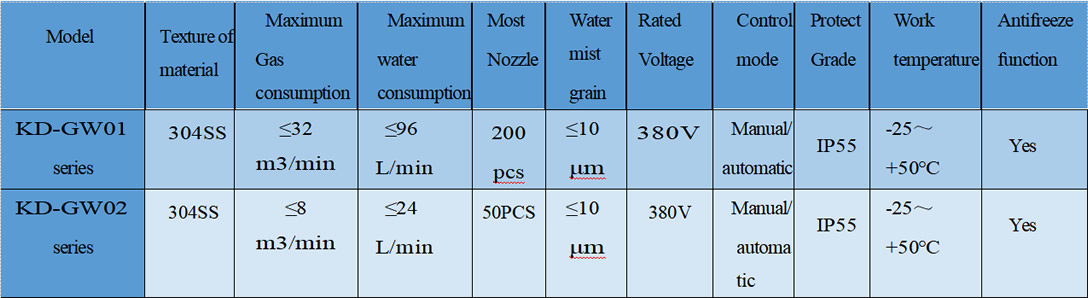

The main functional parameters of the dry fog machine are listed in the table below:

Product features:
※ The shell of the dry mist machine is made of full 304SS or 316SS stainless steel, both of which have excellent corrosion resistance.
※ The dry mist machine adopts a centralized modular design, which is convenient for inspection, maintenance and control.
※ The dry mist machine has an anti freezing function for winter use and can automatically blow and empty the pipeline before stopping.
※ The dry mist machine owns a user-friendly operating interface and can quickly communicate and interact with customer devices.
※ After spraying dry mist on the material, the water consumption is ≤ 0.5 ‰ of the material weight, and the water content increases by ≤ 0.2 ‰ of the material weigh
