CCTV system solution for portal crane

System overview
Due to the large size of portal cranes, operators cannot clearly see the area under the lifting appliance or the traveling status of the portal legs during operation. Our company has specially developed a customized video monitoring solution for portal cranes.

System advantages
1. High-definition integrated camera module.
2. High-efficiency infrared array with an irradiation distance of up to 200 meters.
3. Data transmission latency < 0.18 seconds (180 ms).
4. Hydraulic automatic stabilizer at the jib head, keeping the monitoring view vertically downward at all times.
5. Network disconnection recovery for surveillance video transmission.
6. Intelligent linkage with the electrical system, supporting fully/semi-autonomous remote operation.

Case analysis

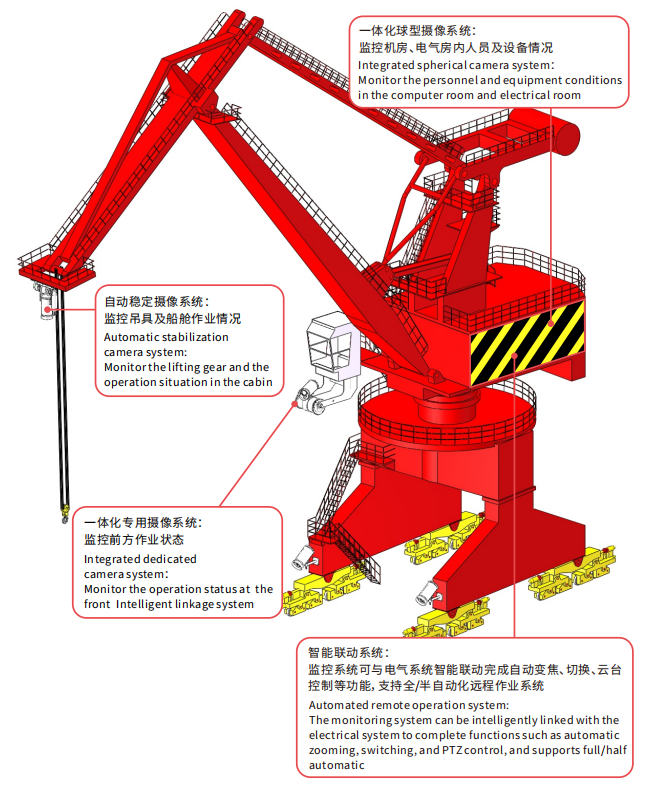

An automatically stabilized camera system is installed on the lifting appliance to monitor the area below, enabling the operator to have a full view. A wide-angle semi-fixed camera system is mounted on the portal legs to effectively monitor the equipment’s traveling environment, improving operational efficiency and eliminating potential safety hazards.
